UL4389 FEP Wire with Silicone Rubber Jacket for Industrial Power and Tinned Copper Conductor

  • UL4389 FEP Wire with Silicone Rubber Jacket for Industrial Power and Tinned Copper Conductor
  • UL4389 FEP Wire with Silicone Rubber Jacket for Industrial Power and Tinned Copper Conductor
  • UL4389 FEP Wire with Silicone Rubber Jacket for Industrial Power and Tinned Copper Conductor
  • UL4389 FEP Wire with Silicone Rubber Jacket for Industrial Power and Tinned Copper Conductor
  • UL4389 FEP Wire with Silicone Rubber Jacket for Industrial Power and Tinned Copper Conductor
  • UL4389 FEP Wire with Silicone Rubber Jacket for Industrial Power and Tinned Copper Conductor
Lugar de origem Cantão, China
Marca MYSUN
Número do modelo UL1858
Quantidade de ordem mínima 3050

Contacte-me para amostras grátis e vales.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Se você tem algum interesse, nós fornecemos a ajuda online de 24 horas.

x
Detalhes do produto
Material condutor Cobre enlatado Opções de diâmetro 2X22AWG, 2X20AWG, 2X18AWG, 3X22AWG, 3X20AWG, 3X18AWG, 4X20AWG, 4X18AWG
Material de isolamento Borracha Tensão nominal 600 v
Tipo de condutor Sólido Forma Redondo
Classificação de temperatura 200 ° C. Tipo de isolamento silicone
Opções de condutor Cobre Estanhado/Cobre Prateado Espessura nominal 0,33 milímetros
Espessura externa da roupa 1,00 mm Faixa de diâmetro 4,5-8,00mm
Construção 19 fios por condutor Diâmetro da fita 0,15-0,235mm
Comprimento 305 m/1.000 pés
Destacar

Silicone Rubber Jacket FEP Wire

,

Industrial Power Silicone Insulated Wire

,

Tinned Copper High Temperature Wire
Deixe um recado
Descrição de produto

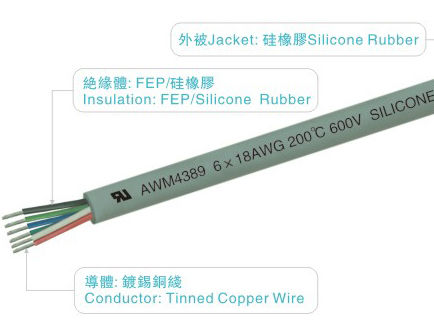

UL4389 FEP Wire 600V 200°C Silicone Rubber Jacket High Temperature Wire for Industrial Power
Supplies Fortune 500 Companies - Top PFA Wire Supplier In China
UL4389 FEP Wire with Silicone Rubber Jacket for Industrial Power and Tinned Copper Conductor 0 UL4389 FEP Wire with Silicone Rubber Jacket for Industrial Power and Tinned Copper Conductor 1
Product Specifications
Conductor Size (AWG) Construction (No./mm) Diameter (mm) Nominal Thickness (mm) Out Garment Thickness (mm) Diameter (mm)
2x22 19/0.15 0.75 0.33 1.00 4.5-6.00
2x20 19/0.19 0.90 0.33 1.00 4.5-6.00
2x18 19/0.235 1.17 0.33 1.00 5.00-6.50
3x22 19/0.15 0.75 0.33 1.00 4.5-6.00
3x20 19/0.19 0.90 0.33 1.00 4.5-6.00
3x18 19/0.235 1.17 0.33 1.00 5.00-6.50
4x22 19/0.15 0.75 0.33 1.00 5.0-6.50
4x20 19/0.19 0.90 0.33 1.00 5.0-6.50
4x18 19/0.235 1.17 0.33 1.00 5.50-7.00
5x22 19/0.15 0.75 0.33 1.00 5.0-6.50
5x20 19/0.19 0.90 0.33 1.00 5.0-6.50
5x18 19/0.235 1.17 0.33 1.00 5.50-7.00
6x22 19/0.15 0.75 0.33 1.00 5.5-7.00
6x20 19/0.19 0.90 0.33 1.00 6.00-7.50
6x18 19/0.235 1.17 0.33 1.00 6.50-8.00
7x22 19/0.15 0.75 0.33 1.00 5.5-7.00
7x20 19/0.19 0.90 0.33 1.00 6.00-7.50
7x18 19/0.235 1.17 0.33 1.00 6.50-8.00
Company Profile
UL4389 FEP Wire with Silicone Rubber Jacket for Industrial Power and Tinned Copper Conductor 2 UL4389 FEP Wire with Silicone Rubber Jacket for Industrial Power and Tinned Copper Conductor 3
Our Products
UL4389 FEP Wire with Silicone Rubber Jacket for Industrial Power and Tinned Copper Conductor 4
Applications
UL4389 FEP Wire with Silicone Rubber Jacket for Industrial Power and Tinned Copper Conductor 5
Our Overseas Clients
UL4389 FEP Wire with Silicone Rubber Jacket for Industrial Power and Tinned Copper Conductor 6
Exhibition
UL4389 FEP Wire with Silicone Rubber Jacket for Industrial Power and Tinned Copper Conductor 7
Certifications
UL4389 FEP Wire with Silicone Rubber Jacket for Industrial Power and Tinned Copper Conductor 8
Frequently Asked Questions
1. Who Are We?
We are a professional manufacturer of high-temperature wires and cables with 26 years of electric wire experience. Our headquarter is located in Shenzhen, Guangdong, China, and our two production bases are located in Dongguan, Guangdong, China and Jingzhou, Hubei, China.
2. What Can We Provide?
We can provide high-temperature wires and cables, silicone tubing - including silicone rubber wire, XLPE, FEP/PFA/ETFE/PTFE wire, new energy cable, wiring harnesses.
3. Why Choose Us?
Free Sample
Competitive Price
High Quality Standard
Customized Service
4. What Certifications Do We Have?
We have UL, cUL, VDE, Reach, CE, ROHS, CCC, CQC Certification.
5. What Services Can We Provide?
Accepted Delivery Terms:
FOB, CIF, EXW, FAS, CIP, FCA, DDP, DDU
Accepted Payment Currency:
USD, EUR, CNY
Accepted Payment Type:
T/T, L/C, PayPal, Western Union, Cash
