UL11628 ETFE Wire with ETFE Insulation and UL758 Standard for Head Sensor Applications

  • UL11628 ETFE Wire with ETFE Insulation and UL758 Standard for Head Sensor Applications
  • UL11628 ETFE Wire with ETFE Insulation and UL758 Standard for Head Sensor Applications
  • UL11628 ETFE Wire with ETFE Insulation and UL758 Standard for Head Sensor Applications
  • UL11628 ETFE Wire with ETFE Insulation and UL758 Standard for Head Sensor Applications
  • UL11628 ETFE Wire with ETFE Insulation and UL758 Standard for Head Sensor Applications
  • UL11628 ETFE Wire with ETFE Insulation and UL758 Standard for Head Sensor Applications
Lugar de origem Cantão, China
Marca MYSUN
Número do modelo UL10468
Quantidade de ordem mínima 3050

Contacte-me para amostras grátis e vales.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Se você tem algum interesse, nós fornecemos a ajuda online de 24 horas.

x
Detalhes do produto
Material condutor Cobre enlatado Diâmetro 12 AWG, 14 AWG, 16 AWG, 18 AWG, 20 AWG, 22 AWG, 24 AWG
Material de isolamento Borracha Tensão nominal 300 v
Tipo de condutor Sólido Forma Redondo
Temperatura 250°C, 150 ou 200°C Tensão 600V
Isolamento ETFE Condutor Cobre Estanhado/Cobre Prateado
Comprimento da unidade 305/1000 Resistência máxima ao condutor 5,64 Ω/KM (12AWG), 8,96 Ω/KM (14AWG), 14,6 Ω/KM (16AWG)
Espessura nominal 0,350 mm (12AWG), 0,300 mm (14AWG), 0,330 mm (16AWG) Diâmetro de isolamento 3,05 mm (12AWG), 2,55 mm (14AWG), 2,16 mm (16AWG)
Construção 19/0,475 (12AWG), 19/0,37 (14AWG), 19/0,30 (16AWG)
Destacar

ETFE Insulation Wire

,

UL758 Standard Wire

,

Head Sensor ETFE Wire
Deixe um recado
Descrição de produto

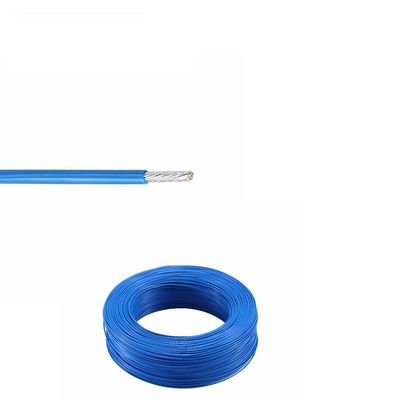

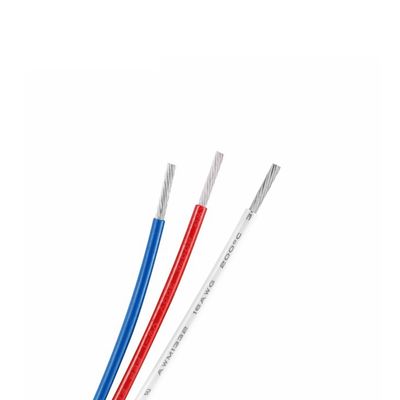

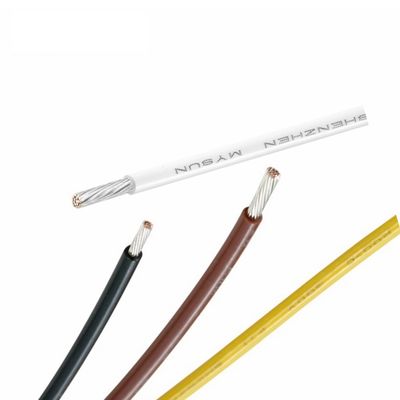

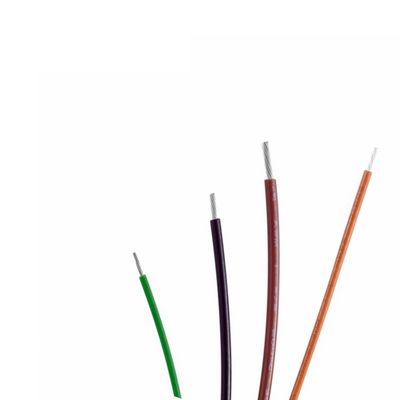

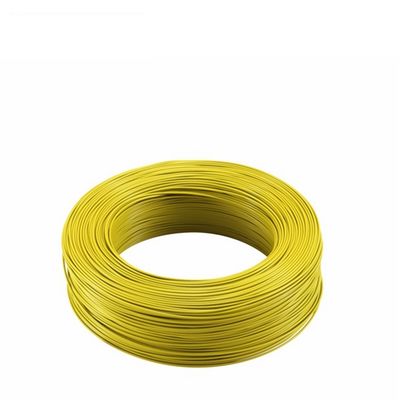

UL11628 ETFE Wire 12AWG-26AWG 600V 200°C High Temperature Cable
Premium ETFE Wire Supplier for Fortune 500 Companies
UL11628 ETFE Wire with ETFE Insulation and UL758 Standard for Head Sensor Applications 0 UL11628 ETFE Wire with ETFE Insulation and UL758 Standard for Head Sensor Applications 1
Technical Specifications
Size (AWG) Conductor Construction Conductor Diameter (mm) Insulation Thickness (mm) Overall Diameter (mm) Max Conductor Resistance (Ω/KM) Unit Length (M/Ft)
30 7/0.10 0.30 0.270 0.84 381 610/2000
28 7/0.127 0.36 0.270 0.90 239 610/2000
26 19/0.10 0.48 0.270 1.02 150 610/2000
24 19/0.12 0.60 0.270 1.14 94.2 610/2000
22 19/0.15 0.75 0.300 1.35 59.4 305/1000
20 19/0.19 0.95 0.330 1.61 36.7 305/1000
18 19/0.235 1.17 0.330 1.83 23.2 305/1000
16 19/0.30 1.50 0.330 2.16 14.6 305/1000
14 19/0.37 1.85 0.300 2.55 8.96 305/1000
12 19/0.475 2.35 0.350 3.05 5.64 305/1000
Click to Contact Us for the Best Quote
Company Profile
UL11628 ETFE Wire with ETFE Insulation and UL758 Standard for Head Sensor Applications 2 UL11628 ETFE Wire with ETFE Insulation and UL758 Standard for Head Sensor Applications 3
Our Product Range
UL11628 ETFE Wire with ETFE Insulation and UL758 Standard for Head Sensor Applications 4
Applications
UL11628 ETFE Wire with ETFE Insulation and UL758 Standard for Head Sensor Applications 5
Our Global Clients
UL11628 ETFE Wire with ETFE Insulation and UL758 Standard for Head Sensor Applications 6
Industry Exhibitions
UL11628 ETFE Wire with ETFE Insulation and UL758 Standard for Head Sensor Applications 7
Certifications
UL11628 ETFE Wire with ETFE Insulation and UL758 Standard for Head Sensor Applications 8
Frequently Asked Questions
  • Who are we? Professional manufacturer of high-temperature wires and cables with 26 years of experience, headquartered in Shenzhen with production bases in Dongguan and Jingzhou.
  • What we provide: High-temperature wires and cables, silicone tubing, including silicone rubber wire, XLPE, FEP/PFA/ETFE/PTFE wire, new energy cable, and wiring harnesses.
  • Why choose us: Free samples, competitive pricing, high quality standards, and customized services.
  • Certifications: UL, cUL, VDE, Reach, CE, ROHS, CCC, CQC certification.
  • Services: Multiple delivery terms (FOB, CIF, EXW, etc.) and payment options (T/T, L/C, PayPal, etc.).
