UL20723 FEP Multi Core Wire with FEP Insulation for High Temperature Applications in UAV Robots and Industrial Equipment

  • UL20723 FEP Multi Core Wire with FEP Insulation for High Temperature Applications in UAV Robots and Industrial Equipment
  • UL20723 FEP Multi Core Wire with FEP Insulation for High Temperature Applications in UAV Robots and Industrial Equipment
  • UL20723 FEP Multi Core Wire with FEP Insulation for High Temperature Applications in UAV Robots and Industrial Equipment
  • UL20723 FEP Multi Core Wire with FEP Insulation for High Temperature Applications in UAV Robots and Industrial Equipment
  • UL20723 FEP Multi Core Wire with FEP Insulation for High Temperature Applications in UAV Robots and Industrial Equipment
  • UL20723 FEP Multi Core Wire with FEP Insulation for High Temperature Applications in UAV Robots and Industrial Equipment
Lugar de origem Cantão, China
Marca MYSUN
Número do modelo UL20723
Quantidade de ordem mínima 3050
Detalhes do produto
Material condutor Cobre enlatado Opções de diâmetro 2X22, 2X18, 2X20, 3X18, 3X20, 3X22, 4X18, 4X20, 4X22, 5X18, 5X20, 5X22, 6X18, 6X20, 6X22, 7X18, 7X20
Material de isolamento FEP Tensão nominal 600V
Tipo de condutor Sólido Forma Redondo
Classificação de temperatura 200°C Tipo Isolado
Requisitos Básicos 2 núcleos ou mais fio FEP 16-4/0 AWG Construção de trança 16X6X012, 16X7X012, 24X6X0,12, 24X8X0,12, 24X10X0,12
Espessura da trança 0,50 mm, 0,60 mm, 0,70 mm, 0,80 mm Espessura Externa da Vestuário 0,35 mm
Espessura nominal 0.50mm Tamanho awg 22, 20, 18
Construção do condutor 19/0,15 mm, 19/0,19 mm, 19/0,235 mm
Destacar

UL20723 FEP Wire

,

Multi Core FEP Wire

,

FEP Insulation Wire
Deixe um recado
Descrição de produto

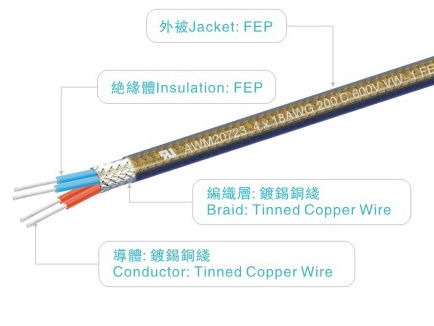

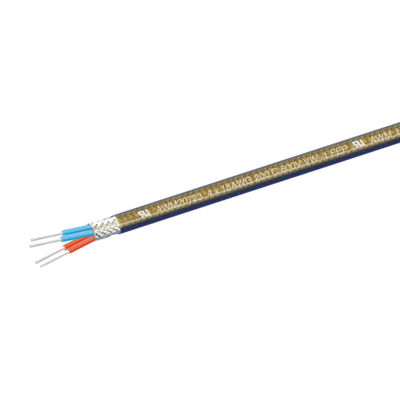

UL20723 FEP Multi Core Wire 600V 200°C Tinned Copper Braid 2X18 - 7X22 High Temperature FEP Wire for UAV Robot
Supplies Fortune 500 Companies | Top PFA Wire Supplier In China
UL20723 FEP Multi Core Wire with FEP Insulation for High Temperature Applications in UAV Robots and Industrial Equipment 0 UL20723 FEP Multi Core Wire with FEP Insulation for High Temperature Applications in UAV Robots and Industrial Equipment 1

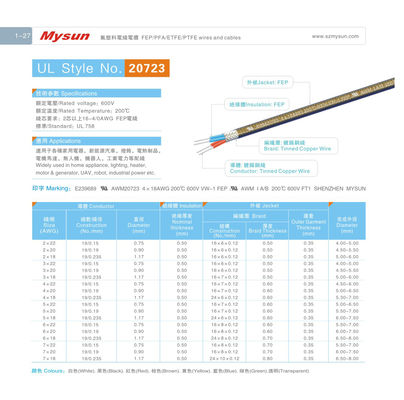

Specification
Size (AWG) Construction (No./mm) Diameter (mm) Nominal Thickness (mm) Braid Outer Garment Thickness (mm) Diameter (mm)
2X2219/0.150.750.5016X6X0120.354.50-5.50
2X2019/0.190.900.5016X6X0120.355.00-6.00
2X1819/0.2351.170.5016X6X0120.355.30-6.30
3X2219/0.150.750.5016X6X0120.354.50-5.50
3X2019/0.190.900.5016X6X0120.355.00-6.00
3X1819/0.2351.170.5016X6X0120.355.30-6.30
4X2219/0.150.750.5016X7X0120.354.50-6.00
4X2019/0.190.900.5016X7X0120.355.00-6.50
4X1819/0.2351.170.5024X6X0.120.355.30-7.00
5X2219/0.150.750.5016X7X0120.355.00-6.50
5X2019/0.190.900.5016X7X0120.355.50-7.00
5X1819/0.2351.170.5024X6X0.120.356.00-7.50
6X2219/0.150.750.5016X8X0120.355.5-7.00
6X2019/0.190.900.5016X8X0120.356.00-7.50
6X1819/0.2351.170.5024X8X0.120.356.50-8.00
7X2219/0.150.750.5016X8X0120.356.00-7.50
7X2019/0.190.900.5016X8X0120.356.50-8.00
7X1819/0.2351.170.5024X10X0.120.357.00-8.50
Company Profile
UL20723 FEP Multi Core Wire with FEP Insulation for High Temperature Applications in UAV Robots and Industrial Equipment 2 UL20723 FEP Multi Core Wire with FEP Insulation for High Temperature Applications in UAV Robots and Industrial Equipment 3
Our Products
UL20723 FEP Multi Core Wire with FEP Insulation for High Temperature Applications in UAV Robots and Industrial Equipment 4
Application
UL20723 FEP Multi Core Wire with FEP Insulation for High Temperature Applications in UAV Robots and Industrial Equipment 5
Our Overseas Clients
UL20723 FEP Multi Core Wire with FEP Insulation for High Temperature Applications in UAV Robots and Industrial Equipment 6
Exhibition
UL20723 FEP Multi Core Wire with FEP Insulation for High Temperature Applications in UAV Robots and Industrial Equipment 7
Certifications
UL20723 FEP Multi Core Wire with FEP Insulation for High Temperature Applications in UAV Robots and Industrial Equipment 8
FAQ
1. Who Are We?
We are a professional manufacturer of high-temperature wires and cables with 26 years of electric wire experience. Our headquarters is located in Shenzhen, Guangdong, China, with production bases in Dongguan, Guangdong and Jingzhou, Hubei, China.
2. What Can We Provide?
We provide high-temperature wires and cables, silicone tubing including silicone rubber wire, XLPE, FEP/PFA/ETFE/PTFE wire, new energy cable, and wiring harnesses.
3. Why Choose Us?
  • Free samples available
  • Competitive pricing
  • High quality standards
  • Customized services
4. What Certifications Do We Have?
UL, cUL, VDE, Reach, CE, ROHS, CCC, CQC certification.
5. What Services Can We Provide?
Accepted Delivery Terms:
FOB, CIF, EXW, FAS, CIP, FCA, DDP, DDU
Accepted Payment Currency:
USD, EUR, CNY
Accepted Payment Type:
T/T, L/C, PayPal, Western Union, Cash
