UL20225 PFA Multi Core Wire with Nickel Plated Copper Braid for High Temperature Applications up to 250°C

  • UL20225 PFA Multi Core Wire with Nickel Plated Copper Braid for High Temperature Applications up to 250°C
  • UL20225 PFA Multi Core Wire with Nickel Plated Copper Braid for High Temperature Applications up to 250°C
  • UL20225 PFA Multi Core Wire with Nickel Plated Copper Braid for High Temperature Applications up to 250°C
  • UL20225 PFA Multi Core Wire with Nickel Plated Copper Braid for High Temperature Applications up to 250°C
  • UL20225 PFA Multi Core Wire with Nickel Plated Copper Braid for High Temperature Applications up to 250°C
Lugar de origem Cantão, China
Marca MYSUN
Número do modelo UL20225
Quantidade de ordem mínima 3050

Contacte-me para amostras grátis e vales.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Se você tem algum interesse, nós fornecemos a ajuda online de 24 horas.

x
Detalhes do produto
Material condutor Cobre enlatado Opções de diâmetro 2X22, 2X18, 2X20, 3X18, 3X20, 3X22, 4X18, 4X20, 4X22, 5X18, 5X20, 5X22, 6X18, 6X20, 6X22, 7X18, 7X20
Material de isolamento PFA Tensão nominal 600V
Tipo de condutor Sólido Forma Redondo
Classificação de temperatura 250°C Tipo Isolado
Material Trançado Cobre folheado a níquel Espessura nominal 0.30mm
Espessura da trança 0,50 mm, 0,60 mm, 0,70 mm, 0,80 mm Espessura Externa da Vestuário 0.51mm
Construção 19/0,15, 19/0,19, 19/0,235 Construção de trança 16X6X012, 16X7X012, 24X6X0,12, 24X8X0,12, 24X10X0,12
Opções de comprimento 305 m/1000 pés
Destacar

Nickel Plated Copper Braid PFA Wire

,

High Temperature PFA Wire

,

UL20225 Multi Core Wire
Deixe um recado
Descrição de produto

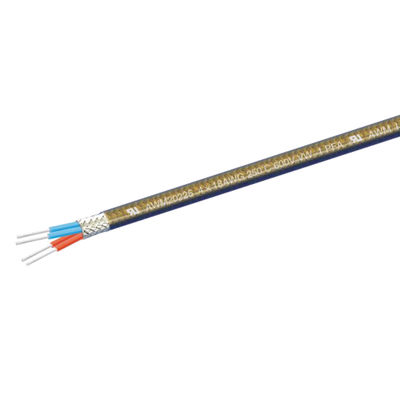

UL20225 PFA Multi Core Wire 600V 250°C Nickel Plated Copper Braid 2X18 - 7X22 High Temperature PFA Wire for UAV Robot
Premium PFA Wire Supplier for Industrial Applications

Supplies Fortune 500 Companies - Top PFA Wire Supplier In China.

UL20225 PFA Multi Core Wire with Nickel Plated Copper Braid for High Temperature Applications up to 250°C 0 UL20225 PFA Multi Core Wire with Nickel Plated Copper Braid for High Temperature Applications up to 250°C 1
Technical Specifications
Size (AWG) Construction (No./mm) Diameter (mm) Nominal Thickness (mm) Braid Outer Garment Thickness (mm) Diameter Range (mm)
2X2219/0.150.750.3016X6X0120.504.50-5.50
2X2019/0.190.900.3016X6X0120.505.00-6.00
2X1819/0.2351.170.3016X6X0120.505.30-6.30
3X2219/0.150.750.3016X6X0120.504.50-5.50
3X2019/0.190.900.3016X6X0120.505.00-6.00
3X1819/0.2351.170.3016X7X0120.505.30-6.30
4X2219/0.150.750.3016X7X0120.604.50-6.00
4X2019/0.190.900.3016X7X0120.605.00-6.50
4X1819/0.2351.170.3024X6X0.120.605.30-7.00
5X2219/0.150.750.3016X7X0120.605.00-6.50
5X2019/0.190.900.3016X7X0120.605.50-7.00
5X1819/0.2351.170.3024X6X0.120.606.00-7.50
6X2219/0.150.750.3016X8X0120.605.5-7.00
6X2019/0.190.900.3016X8X0120.606.00-7.50
6X1819/0.2351.170.3024X8X0.120.706.50-8.00
7X2219/0.150.750.3016X8X0120.706.00-7.50
7X2019/0.190.900.3016X8X0120.706.50-8.00
7X1819/0.2351.170.3024X10X0.120.807.00-8.50
Company Profile
UL20225 PFA Multi Core Wire with Nickel Plated Copper Braid for High Temperature Applications up to 250°C 2 UL20225 PFA Multi Core Wire with Nickel Plated Copper Braid for High Temperature Applications up to 250°C 3
Our Product Range
UL20225 PFA Multi Core Wire with Nickel Plated Copper Braid for High Temperature Applications up to 250°C 4
Applications
UL20225 PFA Multi Core Wire with Nickel Plated Copper Braid for High Temperature Applications up to 250°C 5
Global Clients
UL20225 PFA Multi Core Wire with Nickel Plated Copper Braid for High Temperature Applications up to 250°C 6
Industry Exhibitions
UL20225 PFA Multi Core Wire with Nickel Plated Copper Braid for High Temperature Applications up to 250°C 7
Certifications
UL20225 PFA Multi Core Wire with Nickel Plated Copper Braid for High Temperature Applications up to 250°C 8
Frequently Asked Questions
  • Who Are We? Professional manufacturer of high-temperature wires and cables with 26 years of experience. Headquartered in Shenzhen with production bases in Dongguan and Jingzhou, China.
  • What We Provide: High-temperature wires and cables, silicone tubing, including silicone rubber wire, XLPE, FEP/PFA/ETFE/PTFE wire, new energy cable, and wiring harnesses.
  • Why Choose Us: Free samples, competitive pricing, high quality standards, and customized services.
  • Certifications: UL, cUL, VDE, Reach, CE, ROHS, CCC, CQC certification.
  • Services: Accepted delivery terms: FOB, CIF, EXW, FAS, CIP, FCA, DDP, DDU. Payment options: T/T, L/C, PayPal, Western Union, Cash.
