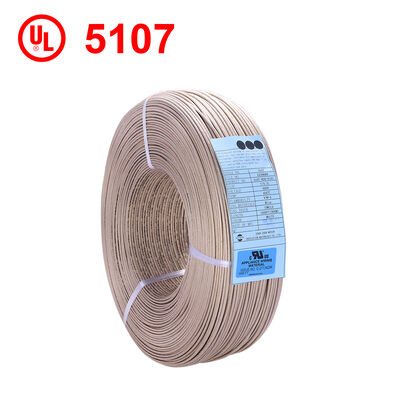

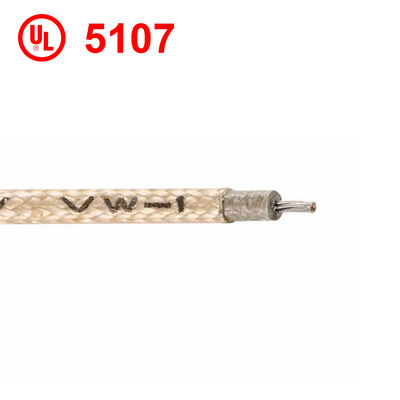

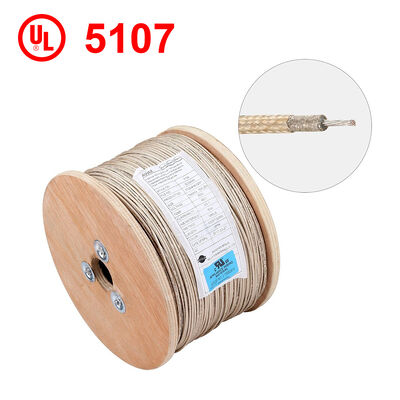

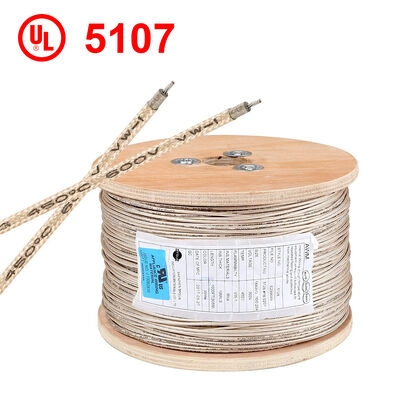

UL Approval 5107 Mica Insulated Wire with 450C Temperature Rating and Tinned Copper Conductor for High Temperature Applications

  • UL Approval 5107 Mica Insulated Wire with 450C Temperature Rating and Tinned Copper Conductor for High Temperature Applications
  • UL Approval 5107 Mica Insulated Wire with 450C Temperature Rating and Tinned Copper Conductor for High Temperature Applications
  • UL Approval 5107 Mica Insulated Wire with 450C Temperature Rating and Tinned Copper Conductor for High Temperature Applications
  • UL Approval 5107 Mica Insulated Wire with 450C Temperature Rating and Tinned Copper Conductor for High Temperature Applications
  • UL Approval 5107 Mica Insulated Wire with 450C Temperature Rating and Tinned Copper Conductor for High Temperature Applications
  • UL Approval 5107 Mica Insulated Wire with 450C Temperature Rating and Tinned Copper Conductor for High Temperature Applications
Lugar de origem Cantão, China
Marca MYSUN
Certificação UL Certification
Número do modelo E239689
Quantidade de ordem mínima 1000
Preço AED 3.74-7.86
Detalhes do produto
Material condutor Fio de cobre estanhado Diâmetro 4 AWG, 6 AWG, 8 AWG, 10 AWG, 12 AWG, 14 AWG, 16 AWG, 18 AWG, 22 AWG, 20 AWG
Material de isolamento Fibra de vidro Tensão nominal 600V
Tipo de condutor Cobre Estanhado Forma Redondo
Temperatura 450C Condutor Núcleo de Cobre
Isolamento Cabo de isolamento de vidro mica Material Cobre
Jaqueta Fibra de vidro Espessura da Mica ≥0,635 mm, ≥0,762 mm
Espessura do vidro 0,178 mm, 0,381 mm Comprimento da unidade 305m (1000 pés)
Construção do condutor 7/0,16 mm, 7/0,20 mm, 7/0,25 mm, 7/0,31 mm, 16/0,254 mm, 26/0,254 mm, 41/0,254 mm, 65/0,254 mm, 35/0
Destacar

UL Approval 5107 Mica Insulated Wire

,

450C Temperature Rating High Temperature Wire

,

Tinned Copper Conductor Fiberglass Cable
Deixe um recado
Descrição de produto
UL Approved 5107 Mica Wire - High Temperature Fiberglass Cable
Seeking Country Agents for a Win-Win Partnership
UL Approval 5107 Mica Insulated Wire with 450C Temperature Rating and Tinned Copper Conductor for High Temperature Applications 0 UL Approval 5107 Mica Insulated Wire with 450C Temperature Rating and Tinned Copper Conductor for High Temperature Applications 1
Product Description
UL Approval 5107 Mica Insulated Wire with 450C Temperature Rating and Tinned Copper Conductor for High Temperature Applications 2 UL Approval 5107 Mica Insulated Wire with 450C Temperature Rating and Tinned Copper Conductor for High Temperature Applications 3
Technical Specifications
UL Approval 5107 Mica Insulated Wire with 450C Temperature Rating and Tinned Copper Conductor for High Temperature Applications 4 UL Approval 5107 Mica Insulated Wire with 450C Temperature Rating and Tinned Copper Conductor for High Temperature Applications 5
SIZE (AWG) CONSTRUCTION (NO./mm) DIAMETER (mm) MICA THICKNESS (mm) GLASS THICKNESS (mm) DIAMETER (mm) UNIT LENGTH(m) (FT)
267/0.160.48≥0.6350.178≥2.15305(1000)
247/0.200.61≥0.6350.178≥2.25305(1000)
227/0.250.77≥0.6350.178≥2.40305(1000)
207/0.310.94≥0.6350.178≥2.60305(1000)
1816/0.2541.19≥0.6350.178≥2.85305(1000)
1626/0.2541.49≥0.6350.178≥3.15305(1000)
1441/0.2541.87≥0.6350.178≥3.50305(1000)
1265/0.2542.36≥0.6350.178≥4.65305(1000)
1035/0.453.06≥0.7620.381≥5.35305(1000)
867/0.403.75≥0.7620.381≥6.05305(1000)
6266/0.2544.75≥0.7620.381≥7.05305(1000)
4420/0.2546.02≥0.7620.381≥8.25305(1000)
Our Products
UL Approval 5107 Mica Insulated Wire with 450C Temperature Rating and Tinned Copper Conductor for High Temperature Applications 6 UL Approval 5107 Mica Insulated Wire with 450C Temperature Rating and Tinned Copper Conductor for High Temperature Applications 7
Applications
UL Approval 5107 Mica Insulated Wire with 450C Temperature Rating and Tinned Copper Conductor for High Temperature Applications 8 UL Approval 5107 Mica Insulated Wire with 450C Temperature Rating and Tinned Copper Conductor for High Temperature Applications 9
Company Profile
UL Approval 5107 Mica Insulated Wire with 450C Temperature Rating and Tinned Copper Conductor for High Temperature Applications 10 UL Approval 5107 Mica Insulated Wire with 450C Temperature Rating and Tinned Copper Conductor for High Temperature Applications 11 UL Approval 5107 Mica Insulated Wire with 450C Temperature Rating and Tinned Copper Conductor for High Temperature Applications 12 UL Approval 5107 Mica Insulated Wire with 450C Temperature Rating and Tinned Copper Conductor for High Temperature Applications 13
Certifications
UL Approval 5107 Mica Insulated Wire with 450C Temperature Rating and Tinned Copper Conductor for High Temperature Applications 14 UL Approval 5107 Mica Insulated Wire with 450C Temperature Rating and Tinned Copper Conductor for High Temperature Applications 15
Why Choose Us
  • 27 years of experience in manufacturing high temperature cables and wires
  • Strict quality inspection under ISO9001, ISO14001, and IATF14969 systems
  • Comprehensive product certifications including UL, cUL, CSA, VDE, CCC, ROHS, REACH
  • Free samples available from stock inventory
  • One-week delivery for standard orders
  • Multiple payment methods: T/T, Western Union, and L/C
  • Strong R&D team for product design and testing
  • Easy one-stop purchasing experience
  • Quick after-sale technical advice and guidance
Frequently Asked Questions
Do you accept partial shipment?
Yes, partial shipment is accepted. However, the freight costs will be covered by the customer.
When the goods have quality problems, will you send us replacements?
If cables have quality issues, please provide details including quantity of defective cables, pictures, and labels. After confirmation, replacements will be shipped with your next order.
Can I order cable quantities lower than your MOQ?
We first check inventory availability. If in stock, lower quantities are acceptable. For out-of-stock items, quantities close to our MOQ are acceptable. Significantly lower quantities will be treated as sample orders with slightly higher pricing.
