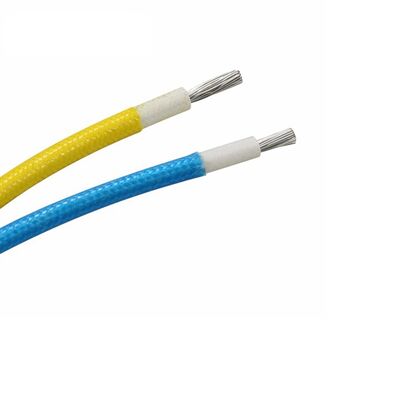

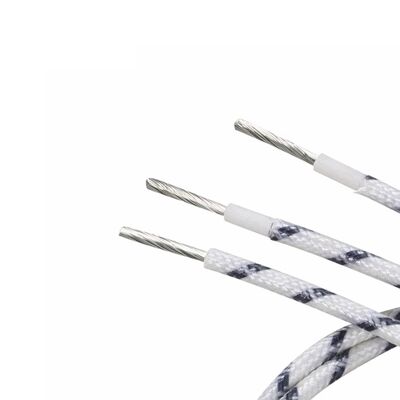

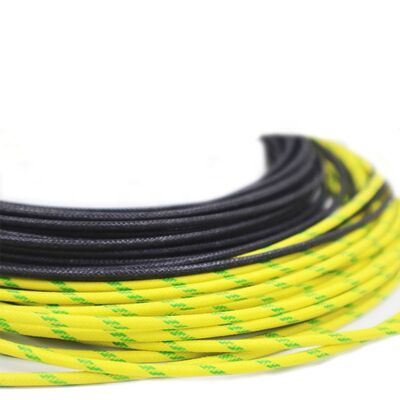

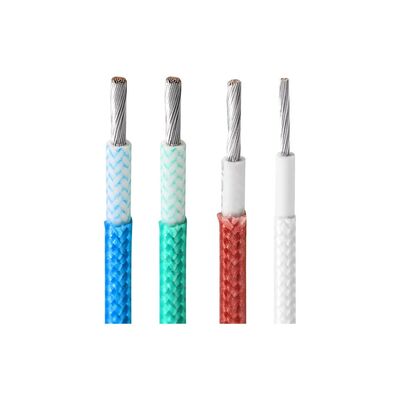

UL3075 600V Rated Voltage 200C Rated Temperature 10AWG Diameter High Flexible Silicone Rubber Fiberglass Braided Wire

  • UL3075 600V Rated Voltage 200C Rated Temperature 10AWG Diameter High Flexible Silicone Rubber Fiberglass Braided Wire
  • UL3075 600V Rated Voltage 200C Rated Temperature 10AWG Diameter High Flexible Silicone Rubber Fiberglass Braided Wire
  • UL3075 600V Rated Voltage 200C Rated Temperature 10AWG Diameter High Flexible Silicone Rubber Fiberglass Braided Wire
  • UL3075 600V Rated Voltage 200C Rated Temperature 10AWG Diameter High Flexible Silicone Rubber Fiberglass Braided Wire
  • UL3075 600V Rated Voltage 200C Rated Temperature 10AWG Diameter High Flexible Silicone Rubber Fiberglass Braided Wire
  • UL3075 600V Rated Voltage 200C Rated Temperature 10AWG Diameter High Flexible Silicone Rubber Fiberglass Braided Wire
Lugar de origem Cantão, China
Marca MYSUN
Certificação ROHS/CCC/VDE/CCC/UL
Número do modelo ul3075
Quantidade de ordem mínima 3050
Preço $0.15-0.35

Contacte-me para amostras grátis e vales.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Se você tem algum interesse, nós fornecemos a ajuda online de 24 horas.

x
Detalhes do produto
Material condutor Cobre Diâmetro 10AWG
Material de isolamento Borracha Tensão nominal 600V
Tipo de condutor Encalhado Classificação de temperatura 200C
Tipo de fio Isolado Condutor Cobre enlatado
Isolamento Borracha de silicone Max Resistance 3,55Ω/KM
Comprimento da unidade 305 medidores/rolo Construção do condutor 19/0,6135/0,457/0,98
Diâmetro do condutor 30,07 mm Espessura de isolamento 1,45 mm
Diâmetro geral 5,97 milímetros
Destacar

600V Rated Voltage Fiberglass Braided Wire

,

200C Rated Temperature Silicone Rubber Wire

,

10AWG Diameter High Temperature Wire
Deixe um recado
Descrição de produto
UL3075 600V 200°C High Flexible 10AWG Silicone Rubber Fiber Glass Braided Wire for Electric Motor
Seeking Country Agents for Win-Win Partnership
UL3075 600V Rated Voltage 200C Rated Temperature 10AWG Diameter High Flexible Silicone Rubber Fiberglass Braided Wire 0
Product Specifications
UL3075 Specification Conductor Insulation Max. Conductor Resistance (Ω/KM) Unit Length (M)(Ft)
10 AWG 19/0.6135/0.457/0.98
3.07 mm		 1.45 mm Nominal Thickness
5.97 mm Diameter		 3.55 305/1000
Click here to contact us for a competitive quote
Company Profile
UL3075 600V Rated Voltage 200C Rated Temperature 10AWG Diameter High Flexible Silicone Rubber Fiberglass Braided Wire 1 UL3075 600V Rated Voltage 200C Rated Temperature 10AWG Diameter High Flexible Silicone Rubber Fiberglass Braided Wire 2
Our Products
UL3075 600V Rated Voltage 200C Rated Temperature 10AWG Diameter High Flexible Silicone Rubber Fiberglass Braided Wire 3
Applications
UL3075 600V Rated Voltage 200C Rated Temperature 10AWG Diameter High Flexible Silicone Rubber Fiberglass Braided Wire 4
Our Overseas Clients
UL3075 600V Rated Voltage 200C Rated Temperature 10AWG Diameter High Flexible Silicone Rubber Fiberglass Braided Wire 5
Exhibition
UL3075 600V Rated Voltage 200C Rated Temperature 10AWG Diameter High Flexible Silicone Rubber Fiberglass Braided Wire 6
Certifications
UL3075 600V Rated Voltage 200C Rated Temperature 10AWG Diameter High Flexible Silicone Rubber Fiberglass Braided Wire 7
Frequently Asked Questions
  • Who Are We? We are a professional manufacturer of high-temperature wires and cables with 26 years of electric wire experience. Our headquarters is located in Shenzhen, Guangdong, China, with production bases in Dongguan, Guangdong and Jingzhou, Hubei, China.
  • What Can We Provide? High-temperature wires and cables, silicone tubing, including silicone rubber wire, XLPE, FEP/PFA/ETFE/PTFE wire, new energy cable, and wiring harnesses.
  • Why Choose Us? Free samples, competitive pricing, high quality standards, and customized services.
  • What Certifications Do We Have? UL, cUL, VDE, Reach, CE, ROHS, CCC, and CQC certifications.
  • What Services Can We Provide? Accepted delivery terms: FOB, CIF, EXW, FAS, CIP, FCA, DDP, DDU. Accepted payment currency: USD, EUR, CNY. Accepted payment types: T/T, L/C, PayPal, Western Union, Cash.
