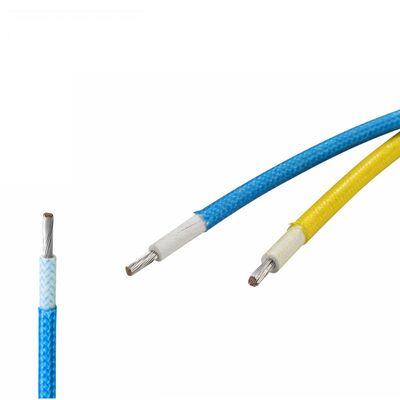

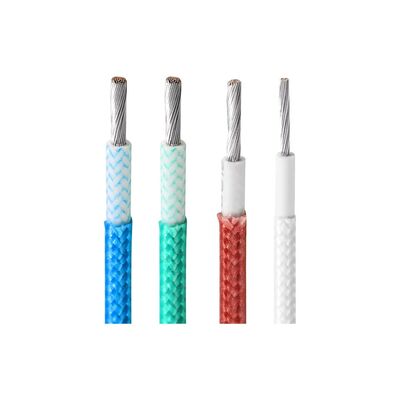

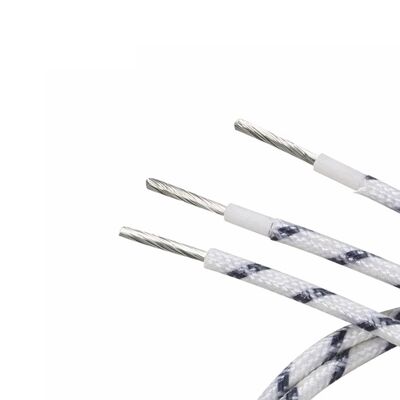

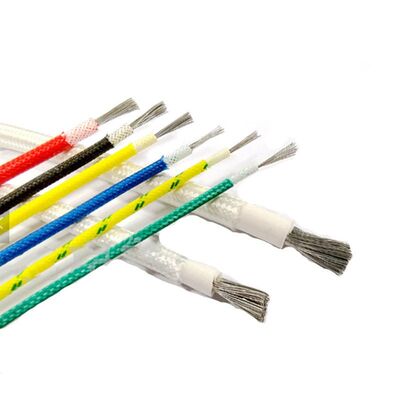

UL3069 Certified 150C Heat Resistance 600V Rated Voltage Silicone Fiberglass Braided Wire in 305m/roll

  • UL3069 Certified 150C Heat Resistance 600V Rated Voltage Silicone Fiberglass Braided Wire in 305m/roll
  • UL3069 Certified 150C Heat Resistance 600V Rated Voltage Silicone Fiberglass Braided Wire in 305m/roll
  • UL3069 Certified 150C Heat Resistance 600V Rated Voltage Silicone Fiberglass Braided Wire in 305m/roll
  • UL3069 Certified 150C Heat Resistance 600V Rated Voltage Silicone Fiberglass Braided Wire in 305m/roll
  • UL3069 Certified 150C Heat Resistance 600V Rated Voltage Silicone Fiberglass Braided Wire in 305m/roll
  • UL3069 Certified 150C Heat Resistance 600V Rated Voltage Silicone Fiberglass Braided Wire in 305m/roll
Lugar de origem Cantão, China
Marca MYSUN
Certificação ROHS/CCC/VDE/CCC/UL
Número do modelo UL3069
Quantidade de ordem mínima 3050
Preço $0.12-0.50

Contacte-me para amostras grátis e vales.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Se você tem algum interesse, nós fornecemos a ajuda online de 24 horas.

x
Detalhes do produto
Material condutor Cobre Opções de diâmetro 20AWG, 22AWG, 24AWG, 26AWG
Material de isolamento Borracha Tensão nominal 600V
Tipo de condutor Encalhado Temperatura máxima 150C
Tipo de fio Isolado Composição do Condutor Cobre enlatado
Tipo de isolamento borracha de silicone Temperatura nominal 150 graus
Comprimento do pacote 305 medidores/rolo Resistência máxima ao condutor 36,7-150Ω/KM
Espessura nominal 0.93 mm Diâmetro de isolamento 2,34-2,80 mm
Diâmetro do condutor 0,48-0,94mm
Destacar

150C Heat Resistance Fiberglass Braided Wire

,

600V Rated Voltage Silicone Fiberglass Braided Wire

,

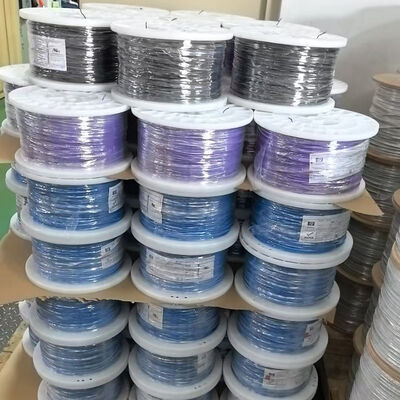

305m/roll Package UL3069 Wire
Deixe um recado
Descrição de produto
UL3069 150C 600V Heat Resistance Wire Silicone Braided Fiberglass Wire Manufacturer
Seeking Country Agents for a Win-Win Partnership
Product Description
UL3069 Certified 150C Heat Resistance 600V Rated Voltage Silicone Fiberglass Braided Wire in 305m/roll 0 UL3069 Certified 150C Heat Resistance 600V Rated Voltage Silicone Fiberglass Braided Wire in 305m/roll 1 UL3069 Certified 150C Heat Resistance 600V Rated Voltage Silicone Fiberglass Braided Wire in 305m/roll 2
Specification
Conductor Size (AWG) Construction (No./mm) Diameter (mm) Insulation Nominal Thickness (mm) Diameter (mm) Max. Conductor Resistance (Ω/KM) Unit Length (M)(Ft)
26 7/0.16 0.48 0.93 2.34 150 305/1000
24 7/0.20 0.61 0.93 2.47 94.2 305/1000
22 7/0.254 0.77 0.93 2.63 59.4 305/1000
20 7/0.31 0.94 0.93 2.80 36.7 305/1000
Click here to contact us for a competitive quote
Company Profile
UL3069 Certified 150C Heat Resistance 600V Rated Voltage Silicone Fiberglass Braided Wire in 305m/roll 3 UL3069 Certified 150C Heat Resistance 600V Rated Voltage Silicone Fiberglass Braided Wire in 305m/roll 4
Our Products
UL3069 Certified 150C Heat Resistance 600V Rated Voltage Silicone Fiberglass Braided Wire in 305m/roll 5
Application
UL3069 Certified 150C Heat Resistance 600V Rated Voltage Silicone Fiberglass Braided Wire in 305m/roll 6
Our Overseas Clients
UL3069 Certified 150C Heat Resistance 600V Rated Voltage Silicone Fiberglass Braided Wire in 305m/roll 7
Exhibition
UL3069 Certified 150C Heat Resistance 600V Rated Voltage Silicone Fiberglass Braided Wire in 305m/roll 8
Certifications
UL3069 Certified 150C Heat Resistance 600V Rated Voltage Silicone Fiberglass Braided Wire in 305m/roll 9
FAQ
  • Who Are We? We are a professional manufacturer of high-temperature wires and cables with 26 years of electric wire experience. Our headquarter is located in Shenzhen, Guangdong, China, and our two production bases are located in Dongguan, Guangdong, China and Jingzhou, Hubei, China.
  • What Can We Provide? We can provide high-temperature wires and cables, silicone tubing - including silicone rubber wire, XLPE, FEP/PFA/ETFE/PTFE wire, new energy cable, wiring harnesses.
  • Why Choose Us? A. Free Sample. B. Competitive Price. C. High Quality Standard. D. Customized Service.
  • What Certifications Do We Have? We have UL, cUL, VDE, Reach, CE, ROHS, CCC, CQC certification.
  • What Services Can We Provide? Accepted Delivery Terms: FOB, CIF, EXW, FAS, CIP, FCA, DDP, DDU. Accepted Payment Currency: USD, EUR, CNY. Accepted Payment Type: T/T, L/C, PayPal, Western Union, Cash.
